Laminators

ME1450FLN

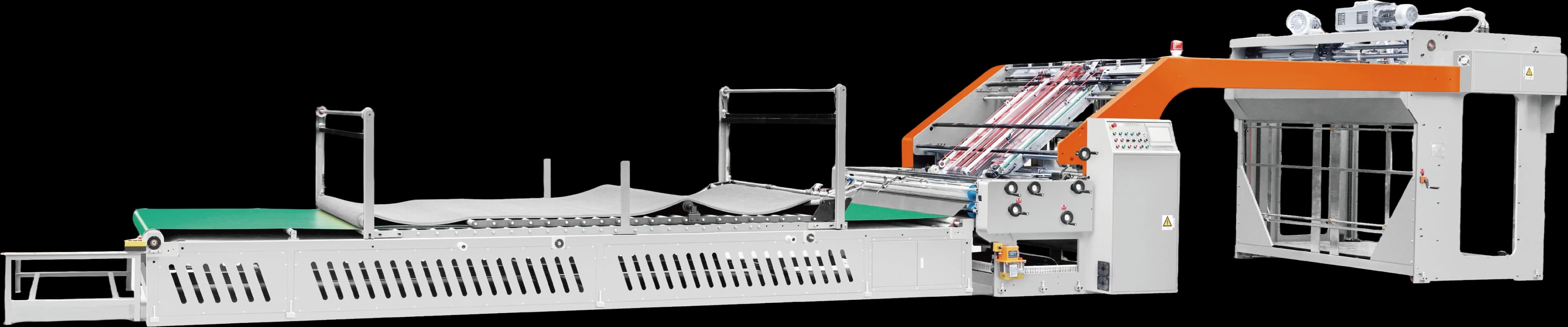

ME1450FLN High-speed Laminator

Stable high-speed 1450 laminator with full-servo tracking for colour-print and corrugated packaging.

Request a QuoteKey Features
16,000 sheets/hour
Max Speed
β€”
Max Pressure
1450Γ—1450mm max paper
Max Size
ME1450FLN

Laminators

Key Features

01Full-servo tracking at 165m/min
0216,000 sheets/hour stable production
032–5 minute changeover
04Automatic glue, lubrication and remote debug

ME1450FLN

Technical Specifications

Max paper size
1450Γ—1450mm
Min paper size
360Γ—350mm
Bottom sheet thickness
0.4–10mm
Face sheet weight
120–700g/mΒ²
Max production speed
16,000 sheets/hour (165m/min)
Laminating accuracy
Β±1.0mm (standard flat)
Adhesives
Starch/dextrin/white latex, pH 6–8
Applicable board
A/B/C/E/F 3/5/7-layer corrugated and hardboard
Machine dimensions
15700Γ—2400Γ—2550mm
Power / weight
26kW / 8000kg
Power supply
380V 3-phase 5-wire

Interested in the ME1450FLN?

Get detailed pricing, configuration options, and delivery information.

Get a Quote for ME1450FLN
