Foil Stampers

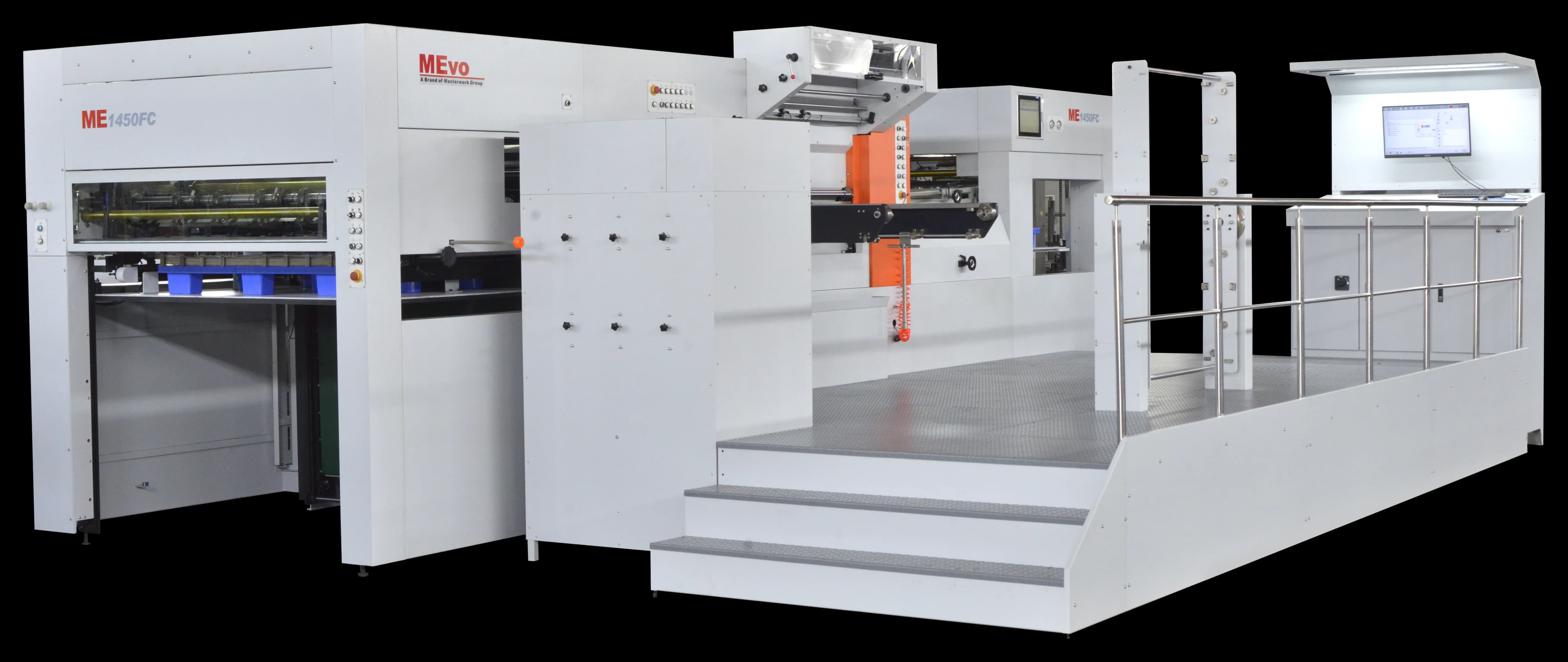

ME1450FC
1450 Large-format Flatbed Foil Stamper with Die Cutting
Large-format flatbed foil stamper with precise die cutting, hot stamping and multi-axis foil control.
- 5,500 sheets/hour
- Max Speed
- 450T
- Max Pressure
- 1440Γ1085mm
- Max Size
Foil Stampers
Key Features
01Large-format die cutting and foil stamping
023 longitudinal + 2 transverse foil servo axes
0320 independent temperature zones
04Non-stop feeder and delivery with remote maintenance
ME1450FC
Technical Specifications
- Max feed size
- 1450Γ1100mm
- Min feed size
- 590Γ450mm
- Gripper margin
- 8β17mm
- Max die-cutting size
- 1445Γ1090mm
- Max foil-stamping size
- 1440Γ1085mm
- Max working pressure
- 450T
- Paper weight range
- 100β2000g/mΒ²
- Corrugated board thickness
- 6mm
- Max working / hot-stamping speed
- 5,500 / 5,000 sheets/hour
- Feeder / delivery pile
- 1500 / 1250mm (with pallet)
- Foil feeding servo system
- 3 longitudinal + 2 transverse axes
- Foil reel diameter
- Ξ¦250 / Ξ¦200mm
- Temperature control zones
- 20 independent zones
- Die / foil-stamping accuracy
- Β±0.1mm
- Total power / net weight
- 85kW / 31T
- Machine dimensions
- 8155Γ6065Γ2919mm
- Compressed air
- 0.55β0.7MPa; β₯0.6mΒ³/min
