Die Cutters

ME1450CS

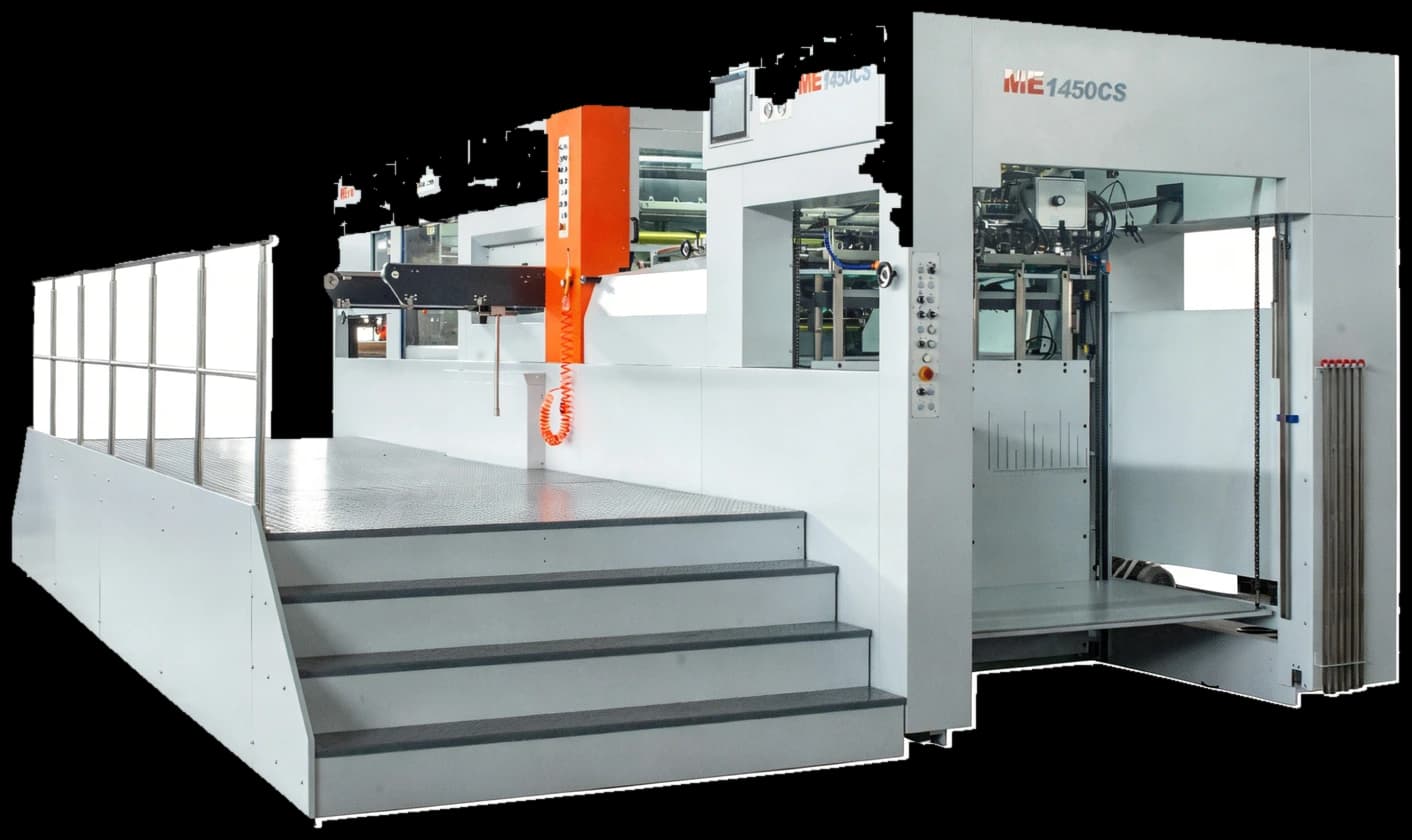

1450 Large-format Flatbed Die Cutter with Stripping

Large-format flatbed die cutter with stripping, built for stable high-volume production.

Request a QuoteKey Features
5,500 sheets/hour
Max Speed
450T
Max Pressure
1445Γ—1090mm
Max Size
ME1450CS

Die Cutters

Key Features

01Four-suction eight-feed high-speed feeder
02Servo feeding and register control
03Non-stop auxiliary delivery
0442-point safety detection and auto lubrication
0515-inch colour HMI with remote maintenance

ME1450CS

Technical Specifications

Max feed size
1450Γ—1100mm
Min feed size
590Γ—390mm
Gripper margin
8–17mm
Max die-cutting size
1445Γ—1090mm
Max die-cutting pressure
450T
Paper weight range
100–2000g/mΒ²
Corrugated board thickness
≀6mm
Max working speed
5,500 sheets/hour
Feeder / delivery pile
1700 / 1500mm (with pallet)
Die-cutting accuracy
Β±0.1mm
Main motor / total power
18.5kW / 36kW
Net weight
28.5T
Machine dimensions
8155Γ—5025Γ—2759mm
Compressed air
0.55–0.7MPa; β‰₯0.37mΒ³/min

Interested in the ME1450CS?

Get detailed pricing, configuration options, and delivery information.

Get a Quote for ME1450CS
