Die Cutters

ME1060CS

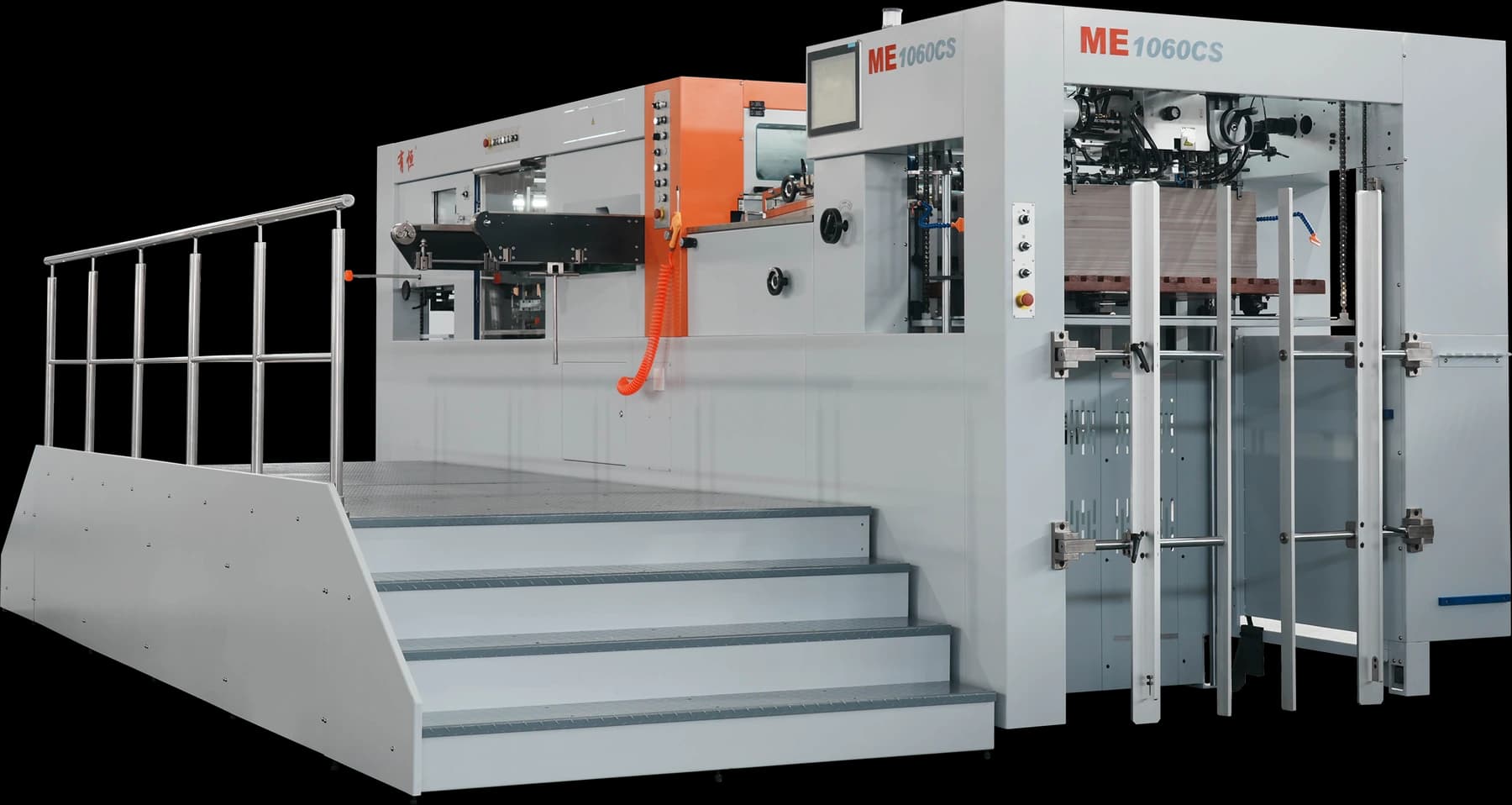

1060 Flatbed Die Cutter with Stripping

High-speed 1060 flatbed die cutter with an integrated stripping station for precise cutting and creasing.

Request a QuoteKey Features
7,500 sheets/hour
Max Speed
300T
Max Pressure
1060Γ—780mm
Max Size
ME1060CS

Die Cutters

Key Features

01Servo register and high-speed feeder
02Integrated stripping station
0315-inch PLC touchscreen
04Automatic waste removal

ME1060CS

Technical Specifications

Max feed size
1070Γ—790mm
Min feed size
400Γ—320mm
Gripper margin
8–17mm
Max die-cutting size
1060Γ—780mm
Max die-cutting pressure
300T
Paper weight range
100–2000g/mΒ²
Corrugated board thickness
5mm
Max working speed
7,500 sheets/hour
Feeder pile height
1580mm (without pallet)
Delivery pile height
1300mm (without pallet)
Die-cutting accuracy
Β±0.1mm
Main motor / total power
11kW / 21kW
Net weight
15.71T
Machine dimensions
5996Γ—4043Γ—2261mm
Compressed air
0.55–0.7MPa; β‰₯0.37mΒ³/min

Interested in the ME1060CS?

Get detailed pricing, configuration options, and delivery information.

Get a Quote for ME1060CS
